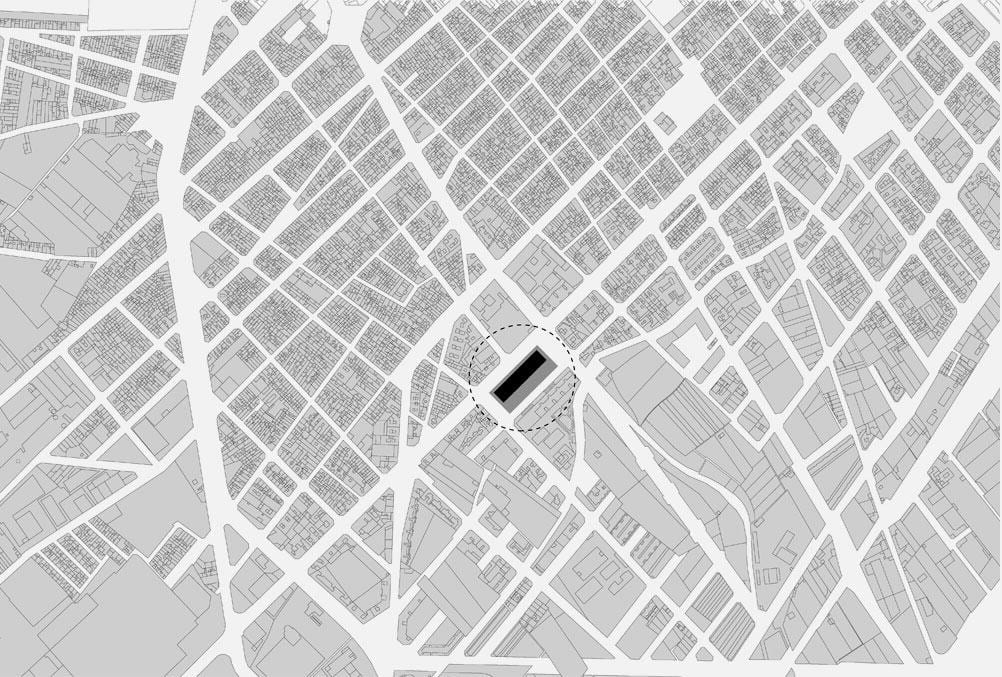

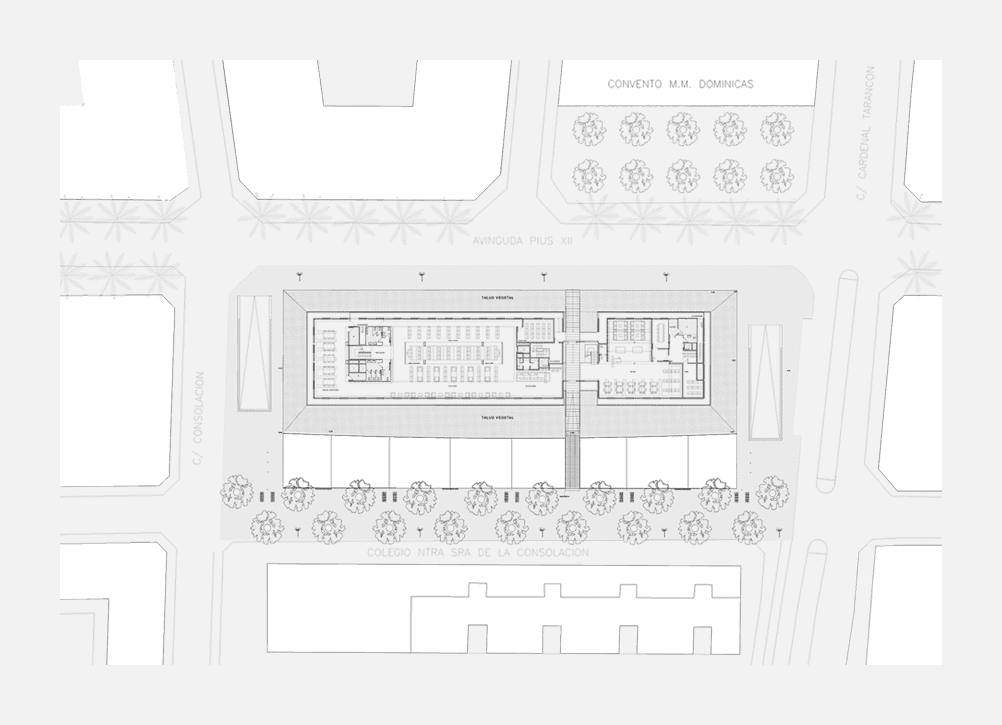

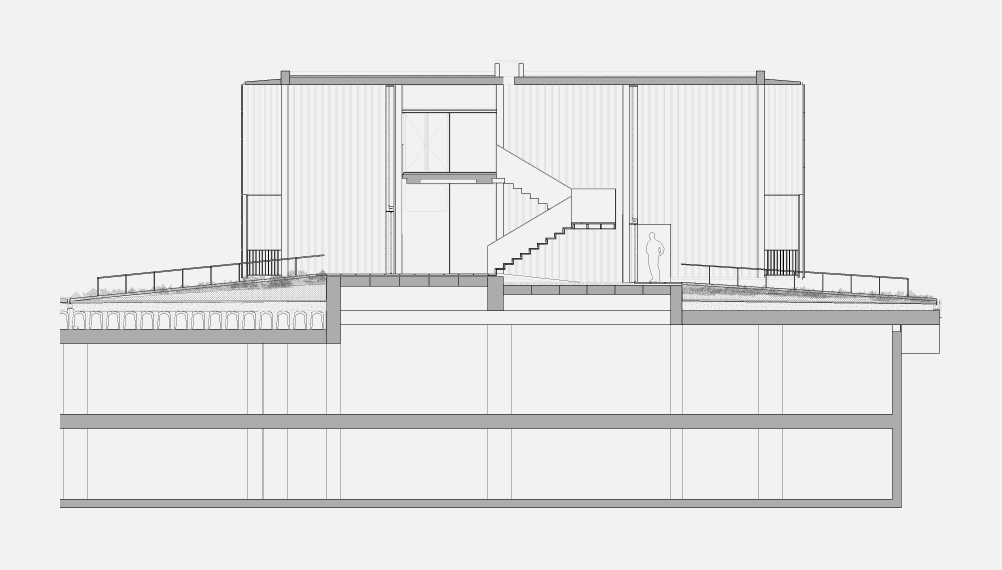

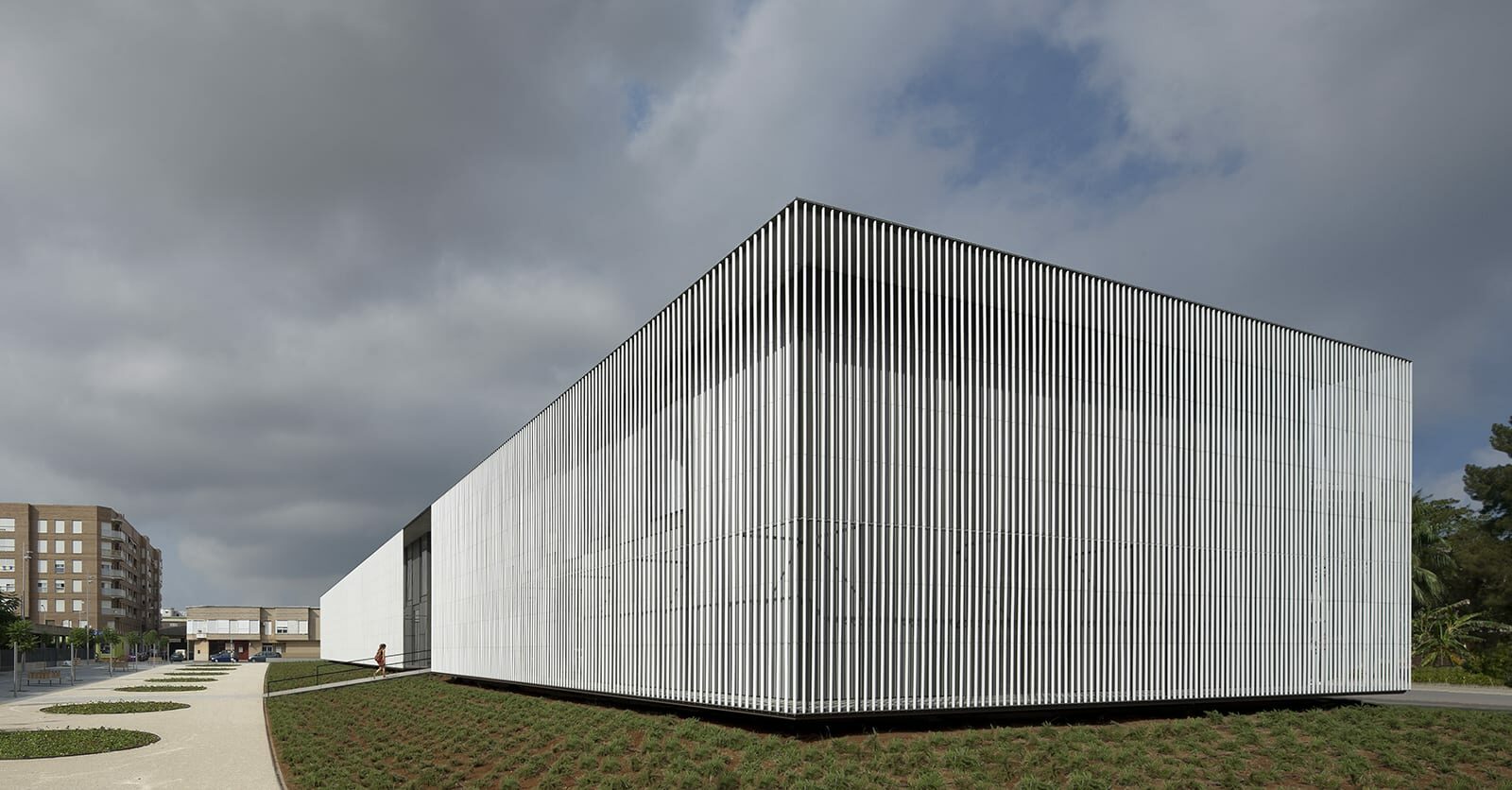

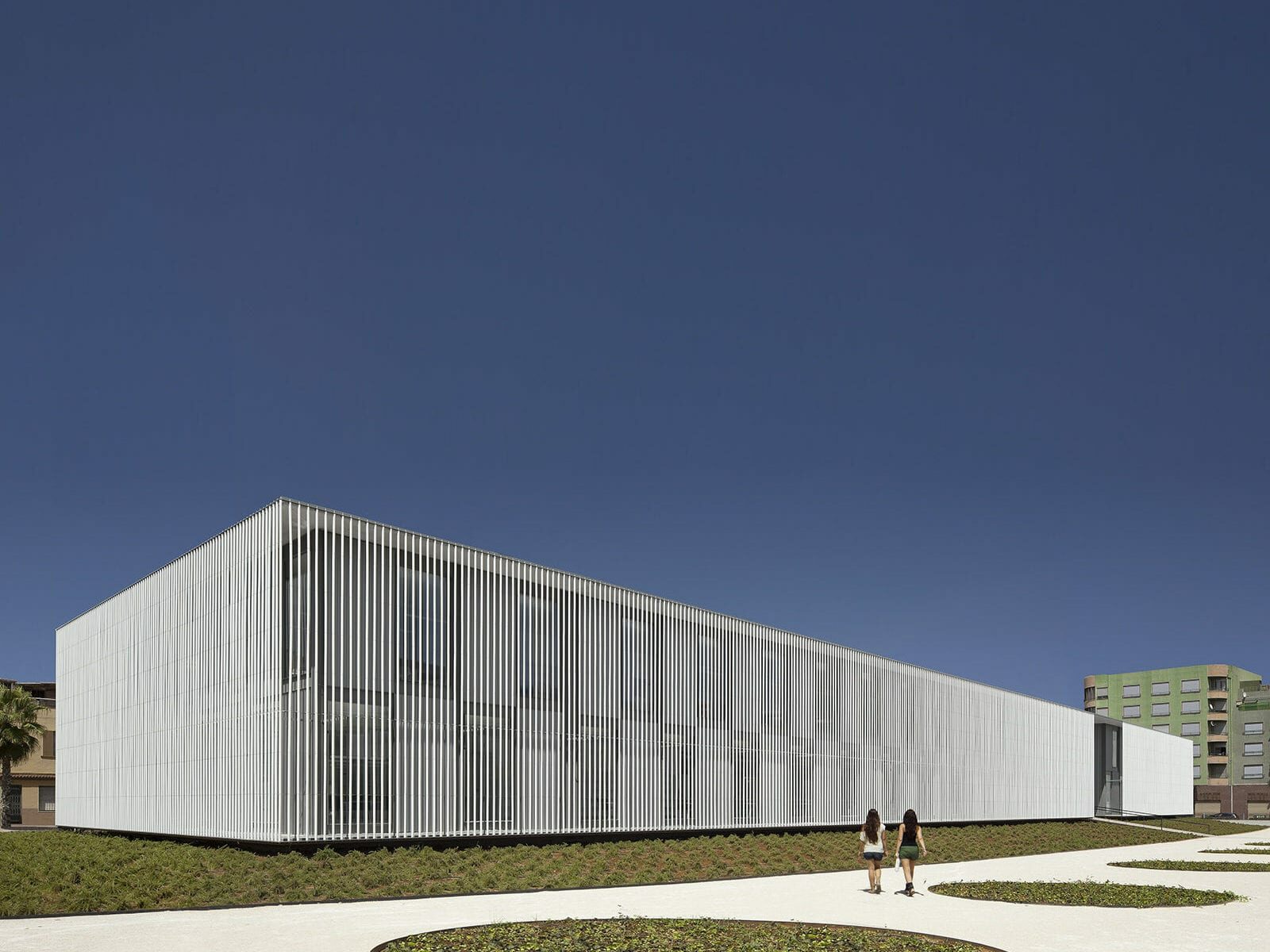

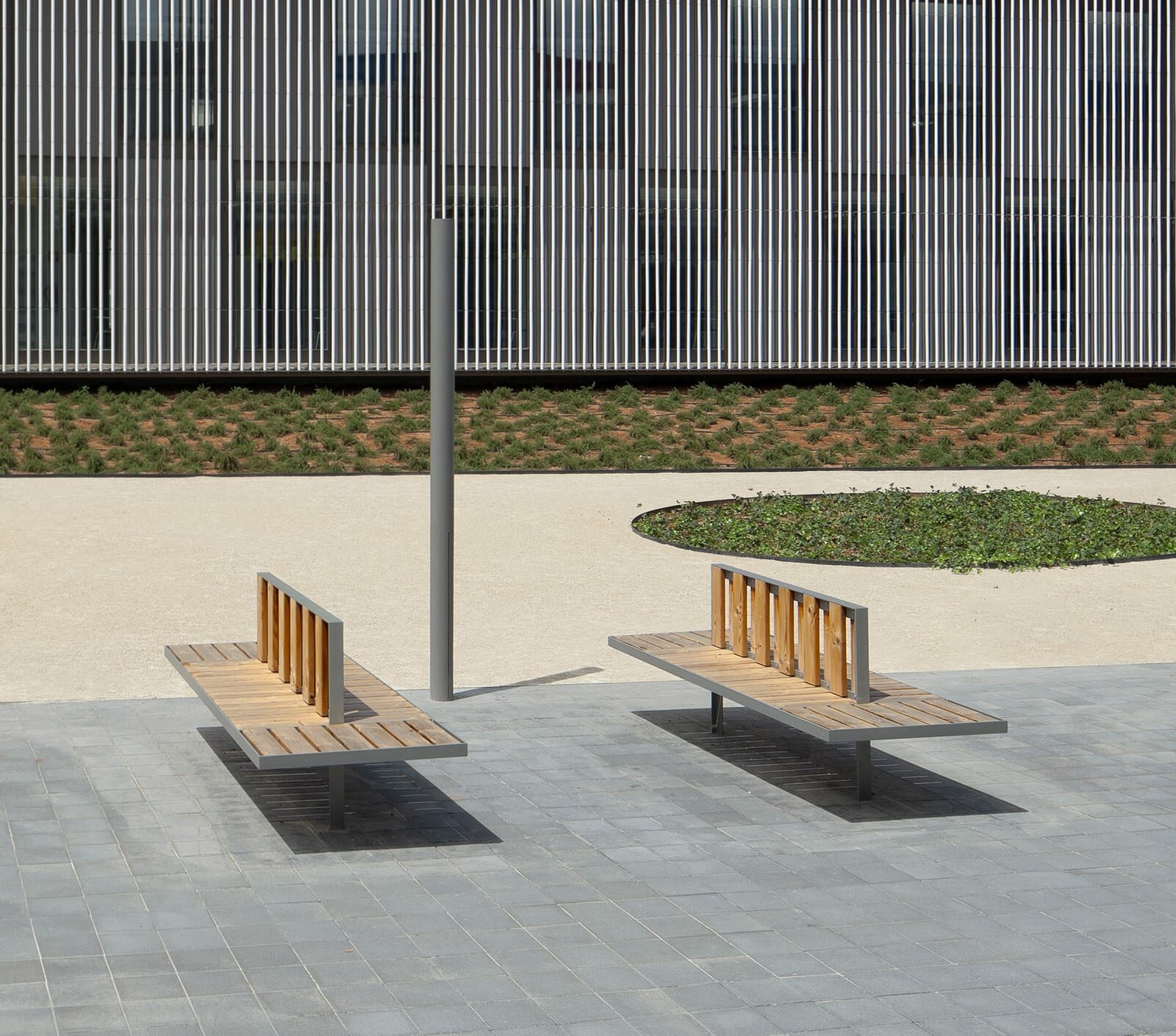

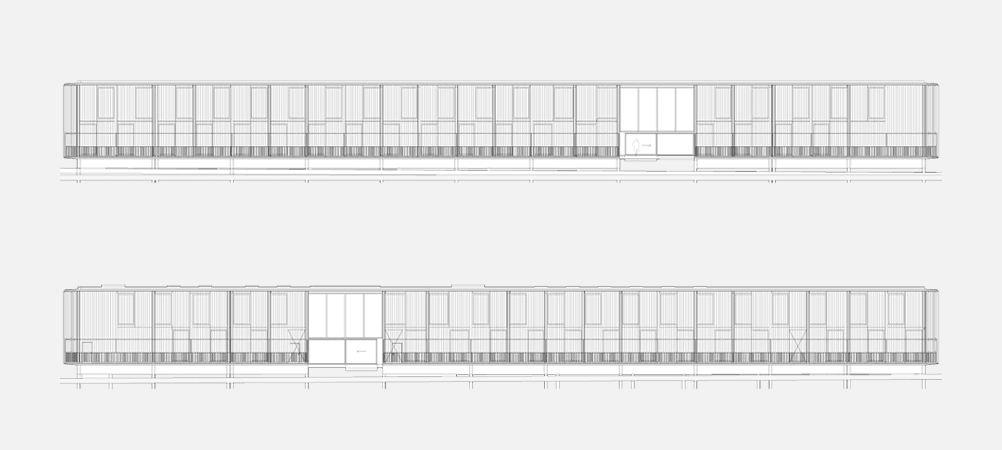

The rectangular site (40×17 m) is oriented to the Northwest, located in between an important access to Villarreal and a school, above a preexisting parking with its exists and ventilations. The proposal that won the completion consists of a simple volume of 83 x 17 m, two floors heigth, that provides a urban façade to the avenue, integrating those volumes, adapting itself to the existing structure, and providing a public space for the school, from which two vegetal slopes lift the building.

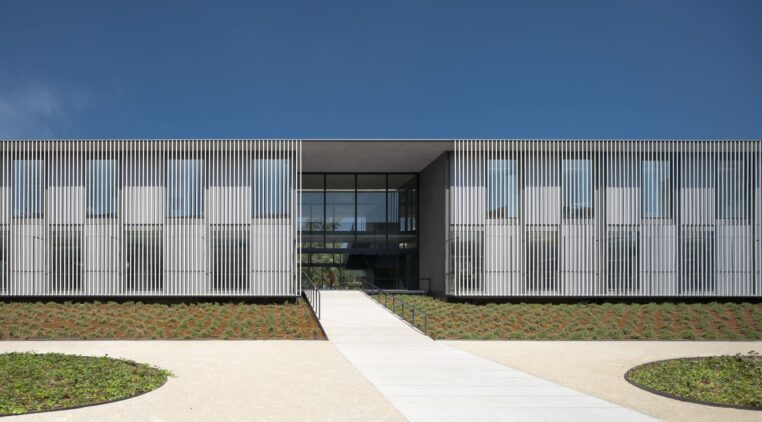

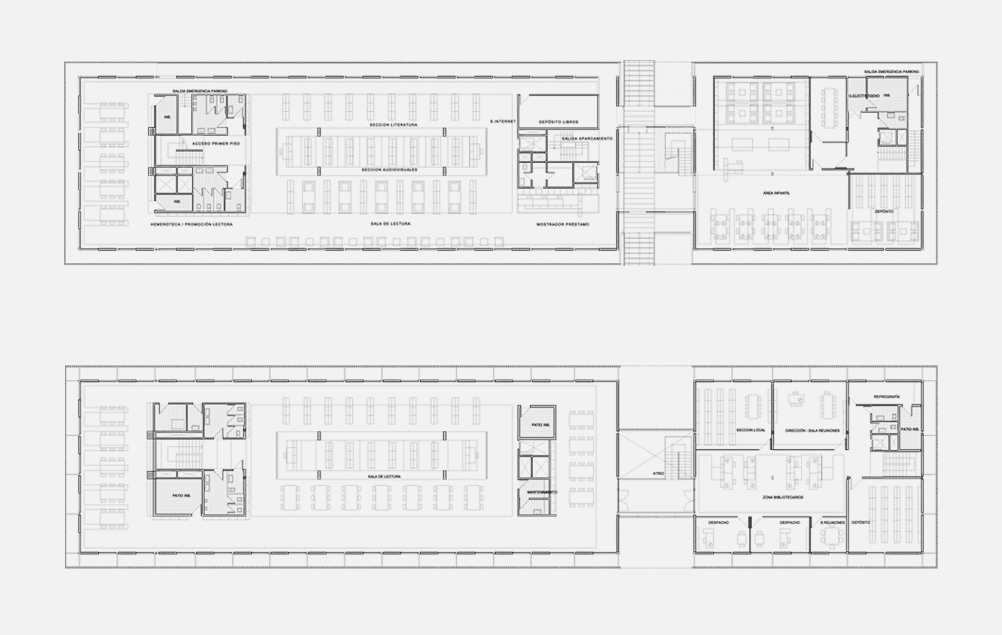

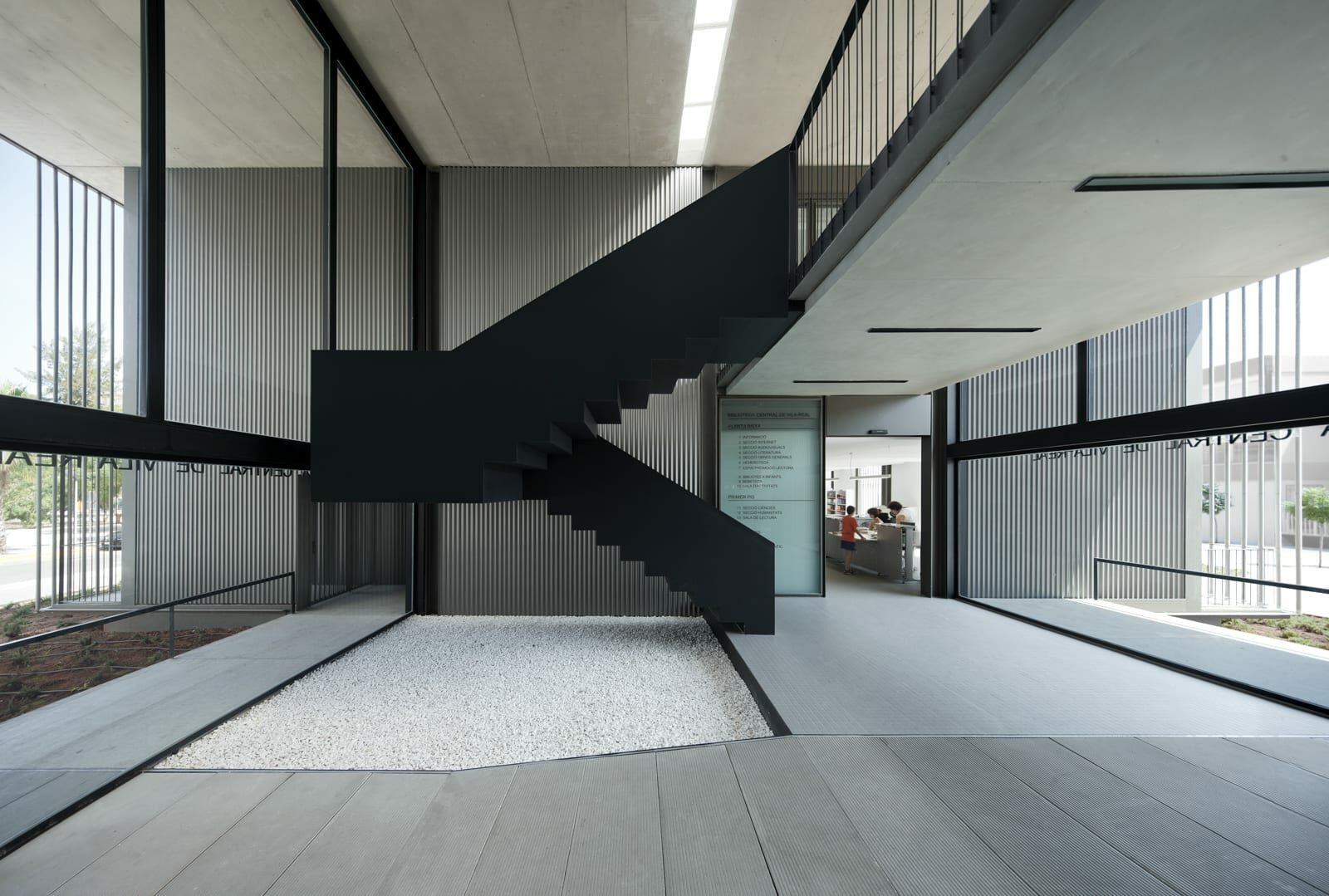

The access to the building is strategically placed at its 1/3 length, for its inner function and also for shortening the dimension of the façade and allowing a crossed access. The central atrium of the library gathers circulations with the deployment of the main stair and the arrival of the different parking exists that through the façade interstice connect with the three structural cores. The project proposes a series of functional spaces of different size but clear geometry, which allow different configurations for a flexible use, initially dedicated to reading, information and work. It will be able to contain 75.000 books and 275 reading spots. A precise and careful work with installations and ceilings has been made seeking integration and flexibility.

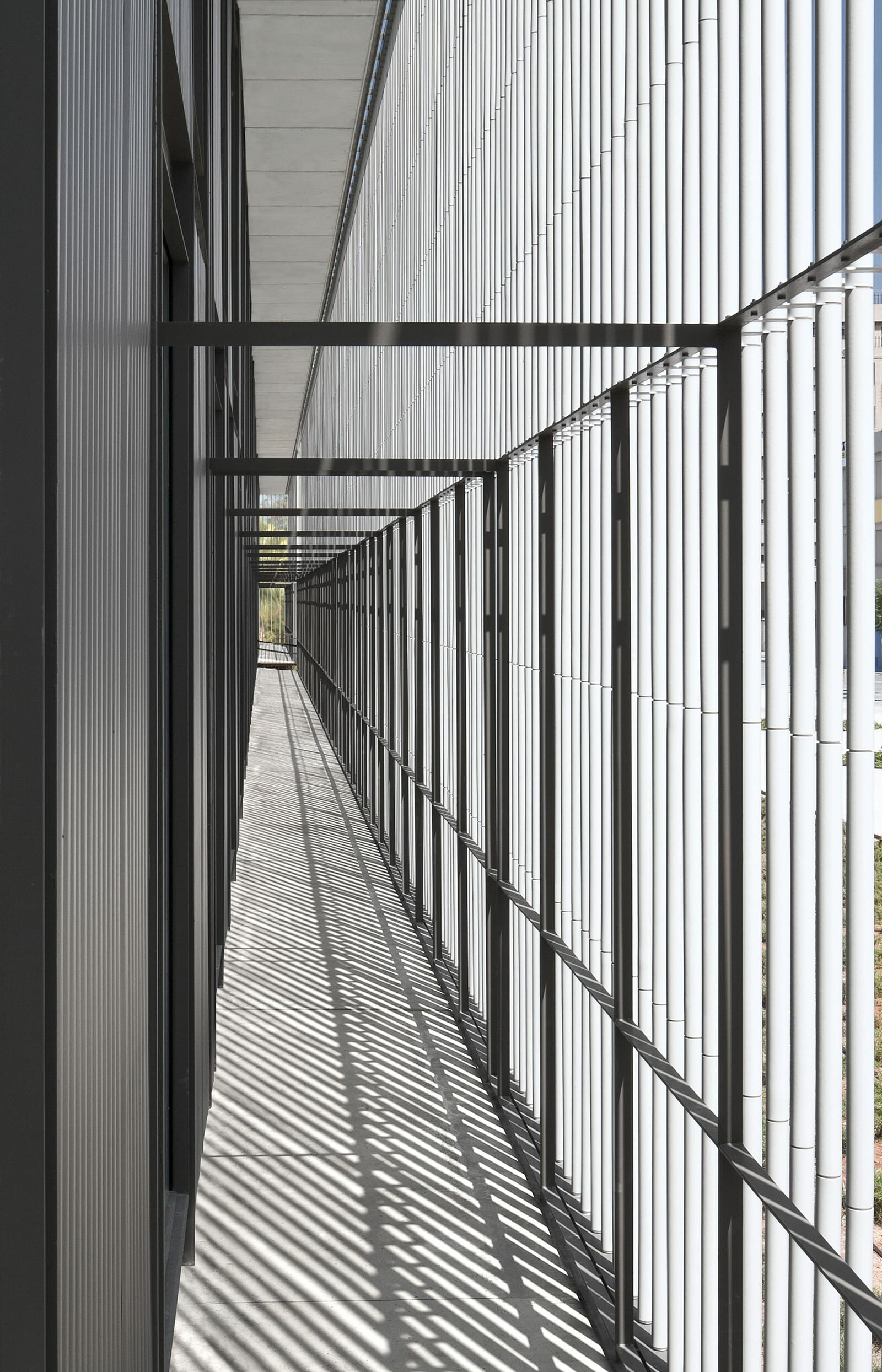

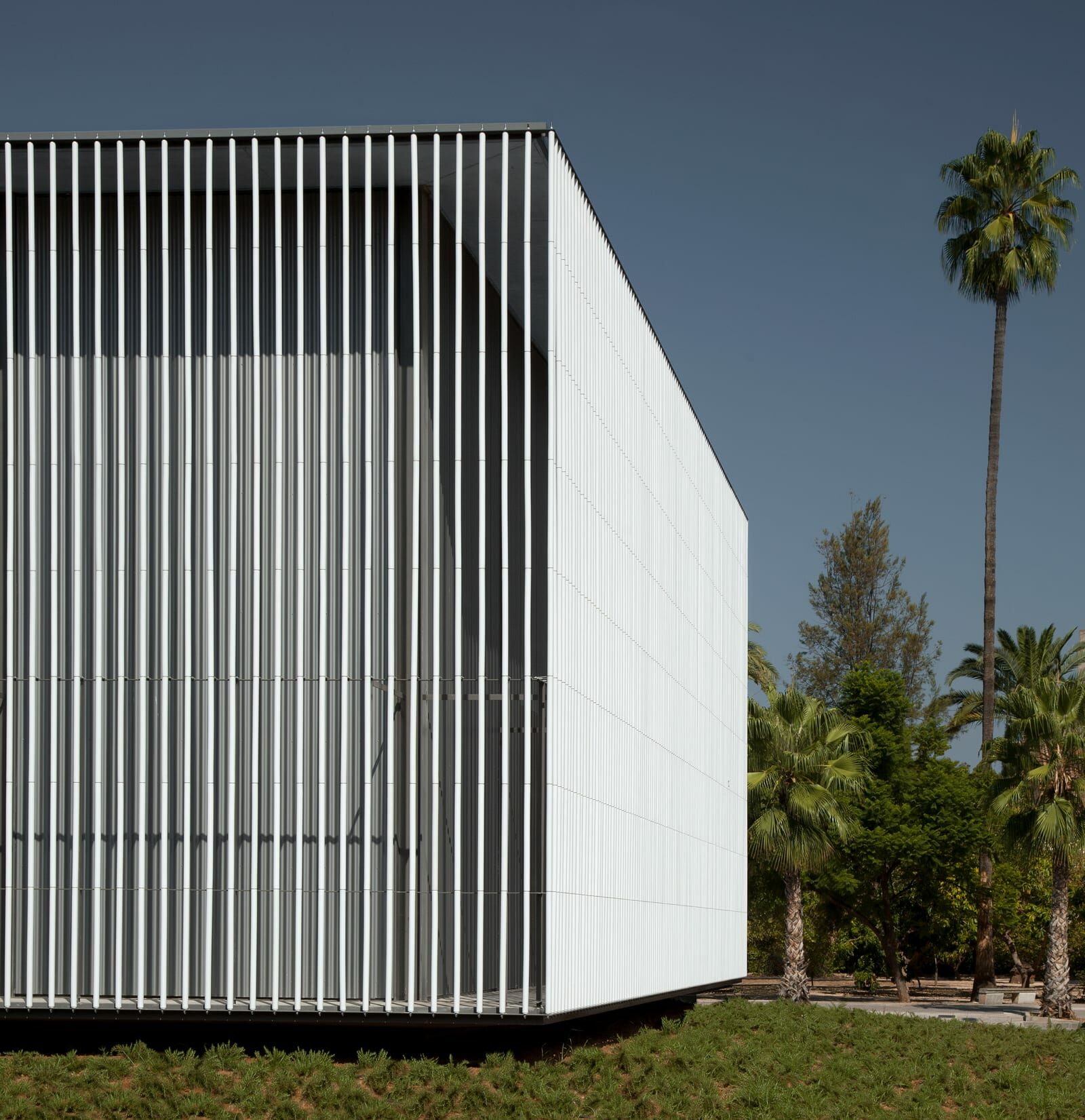

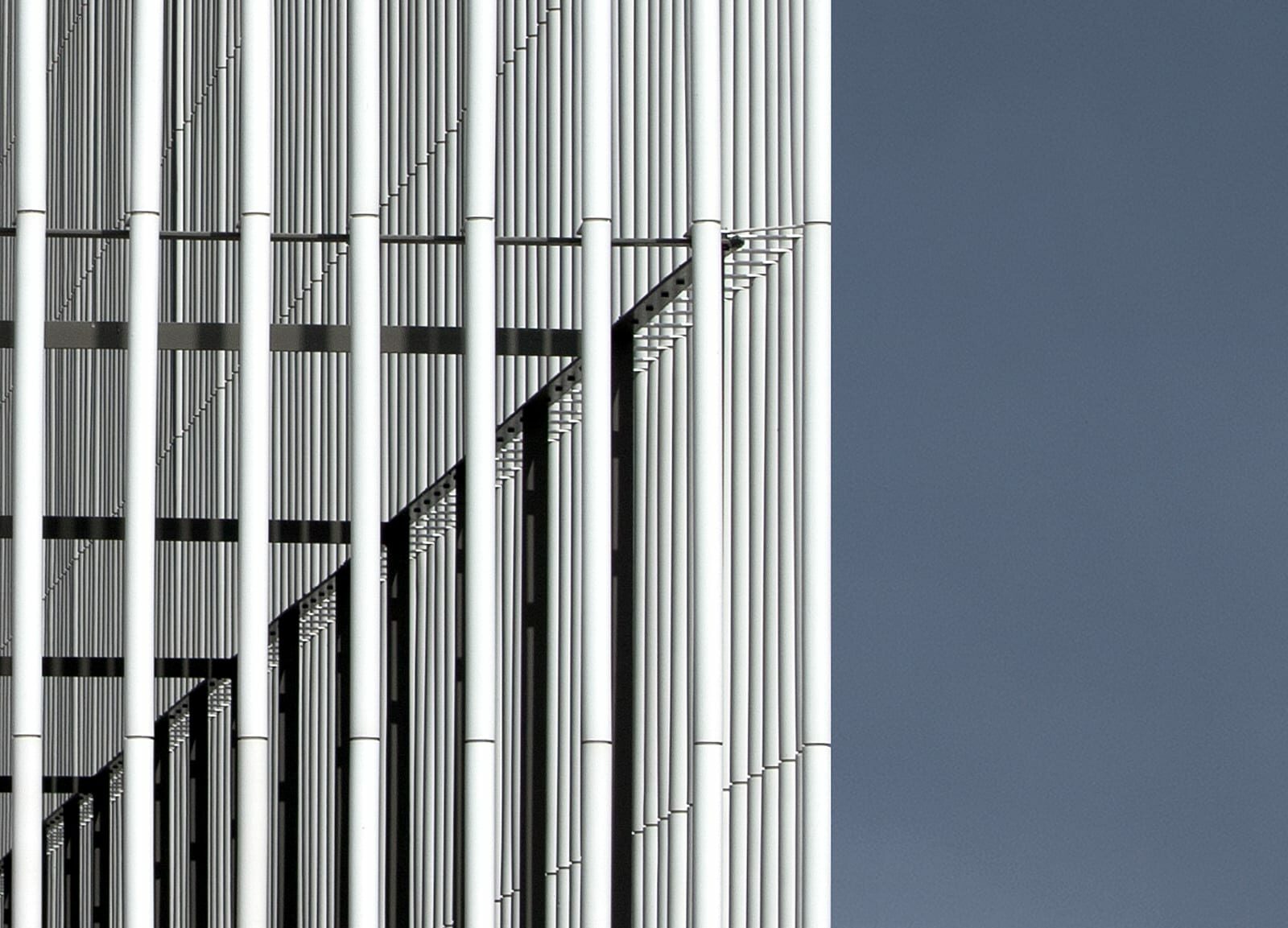

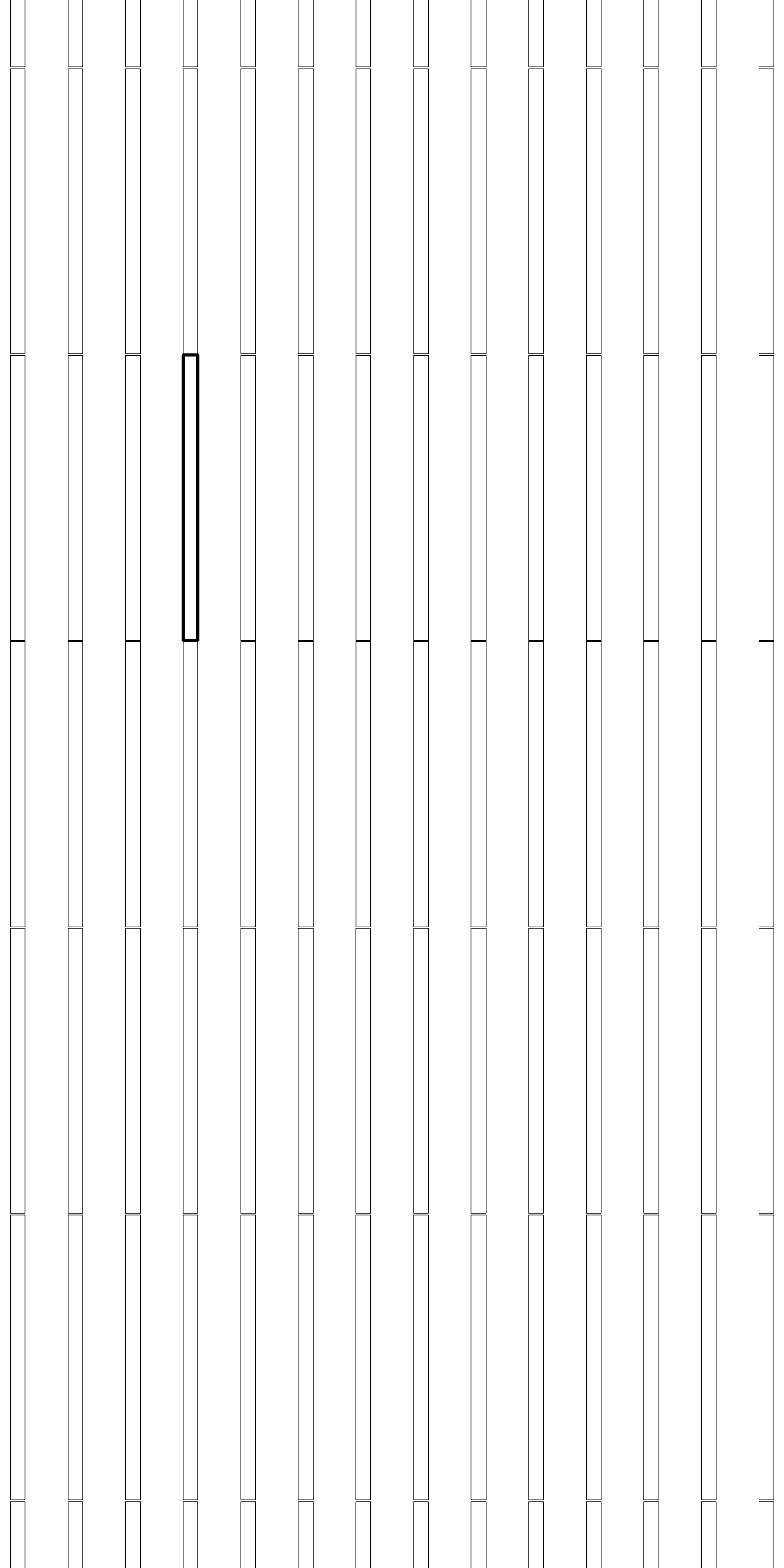

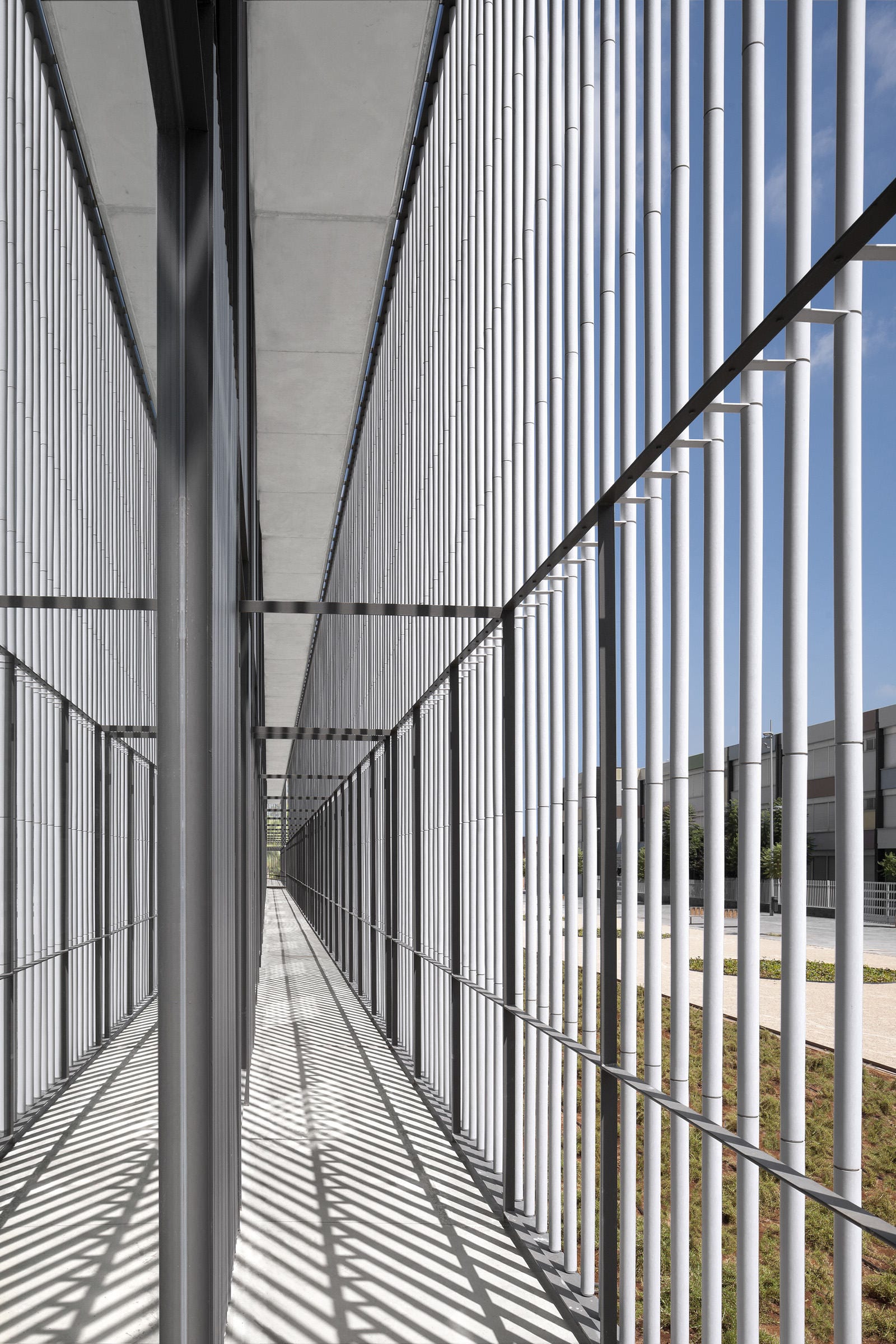

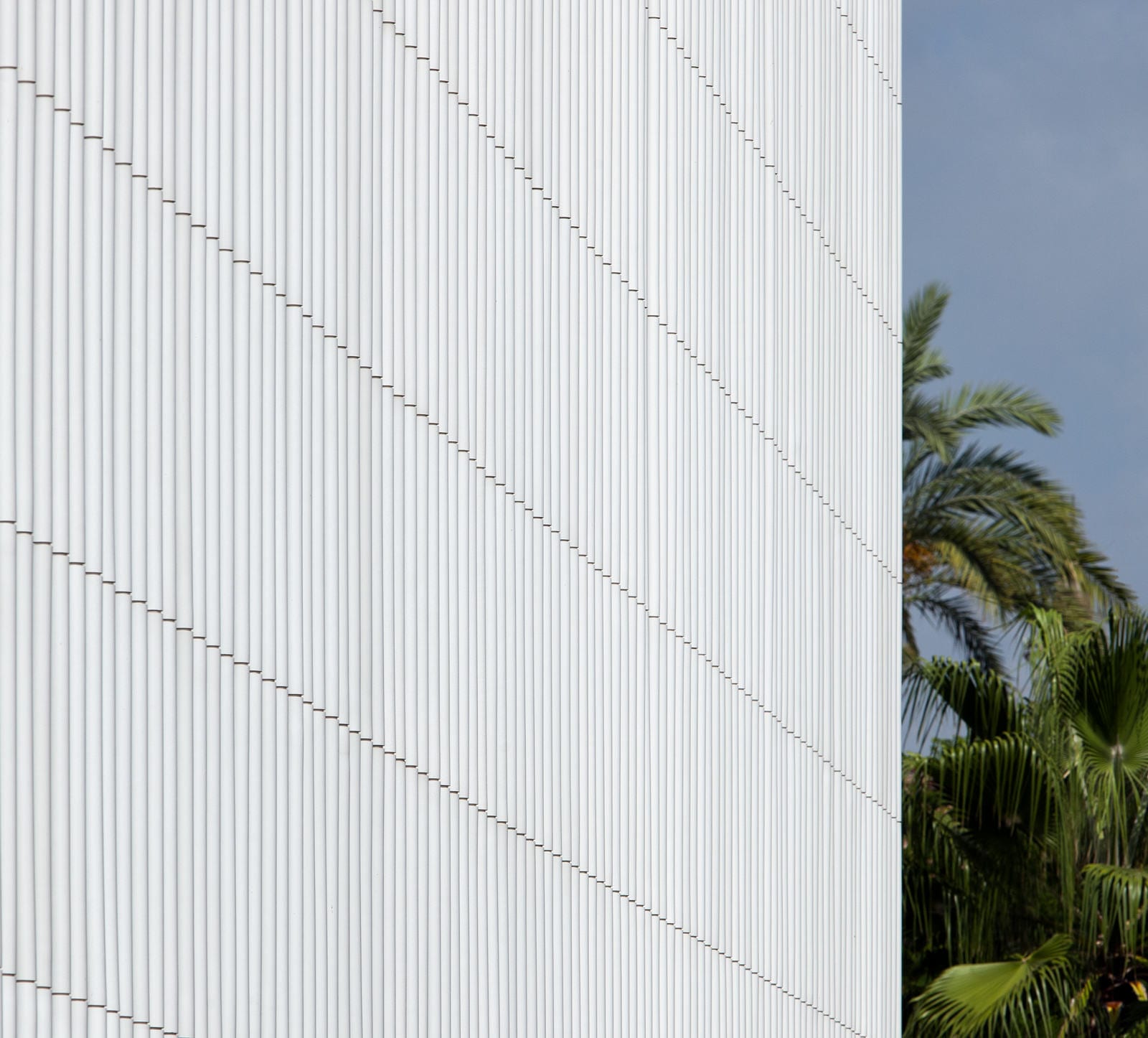

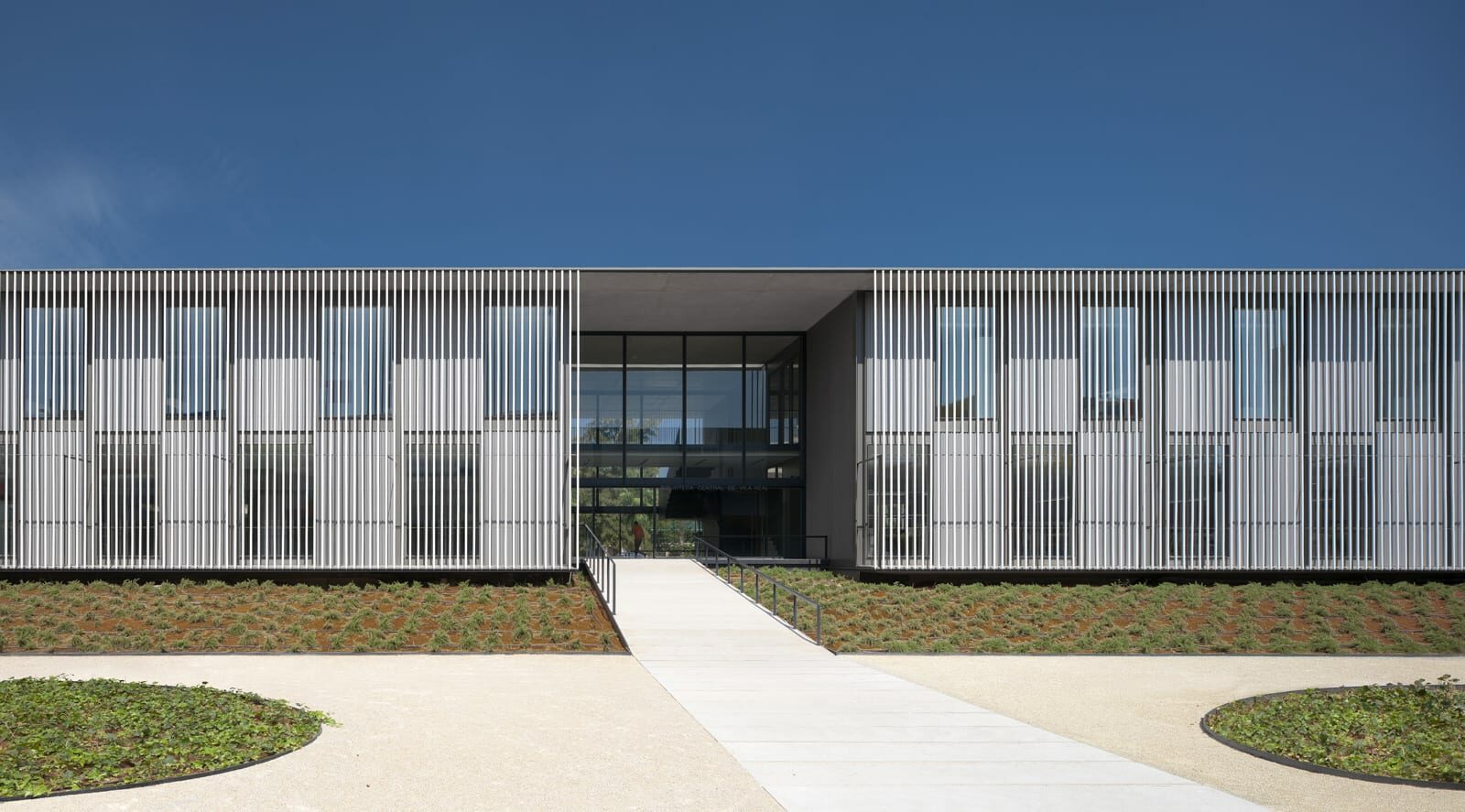

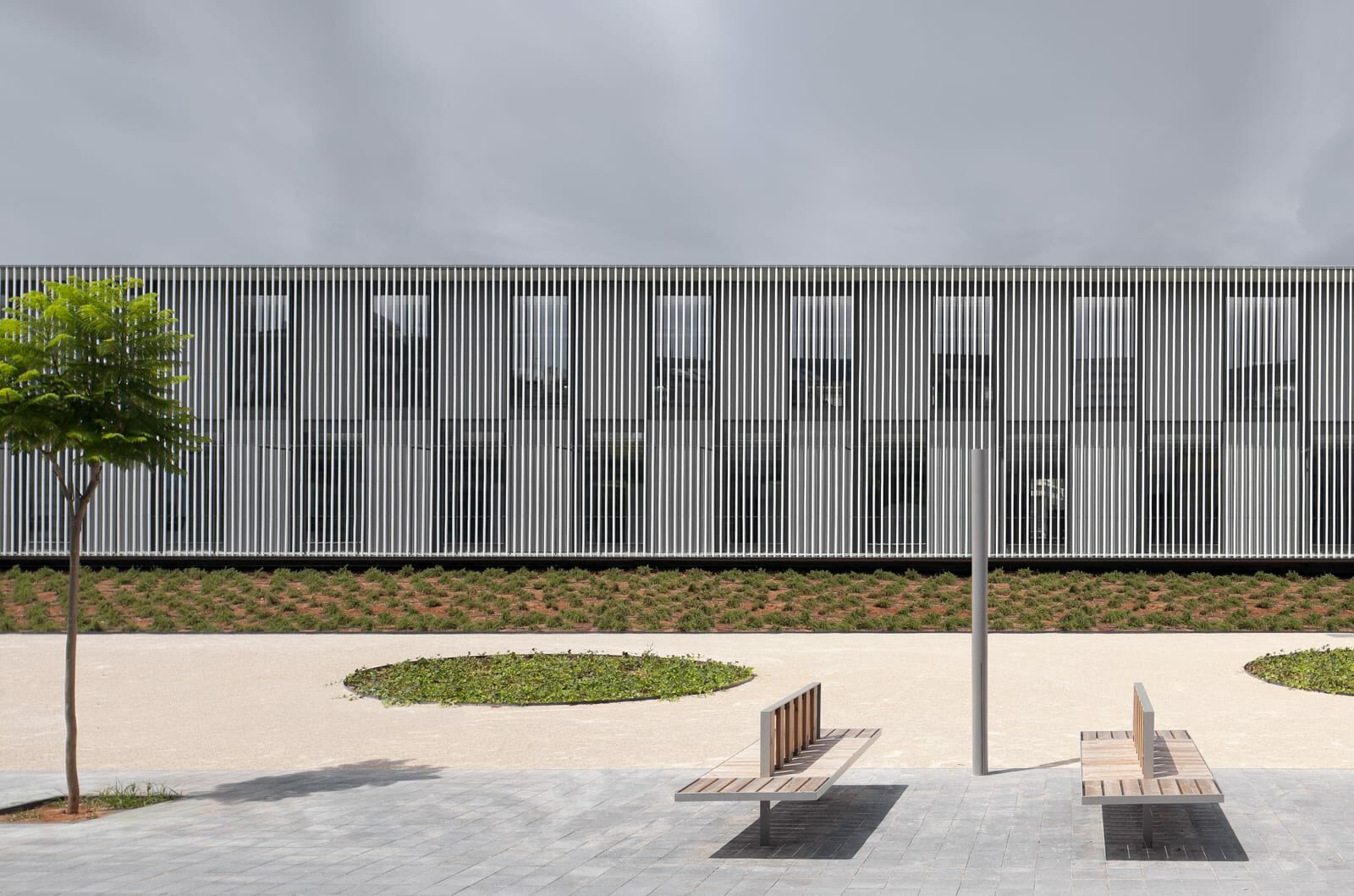

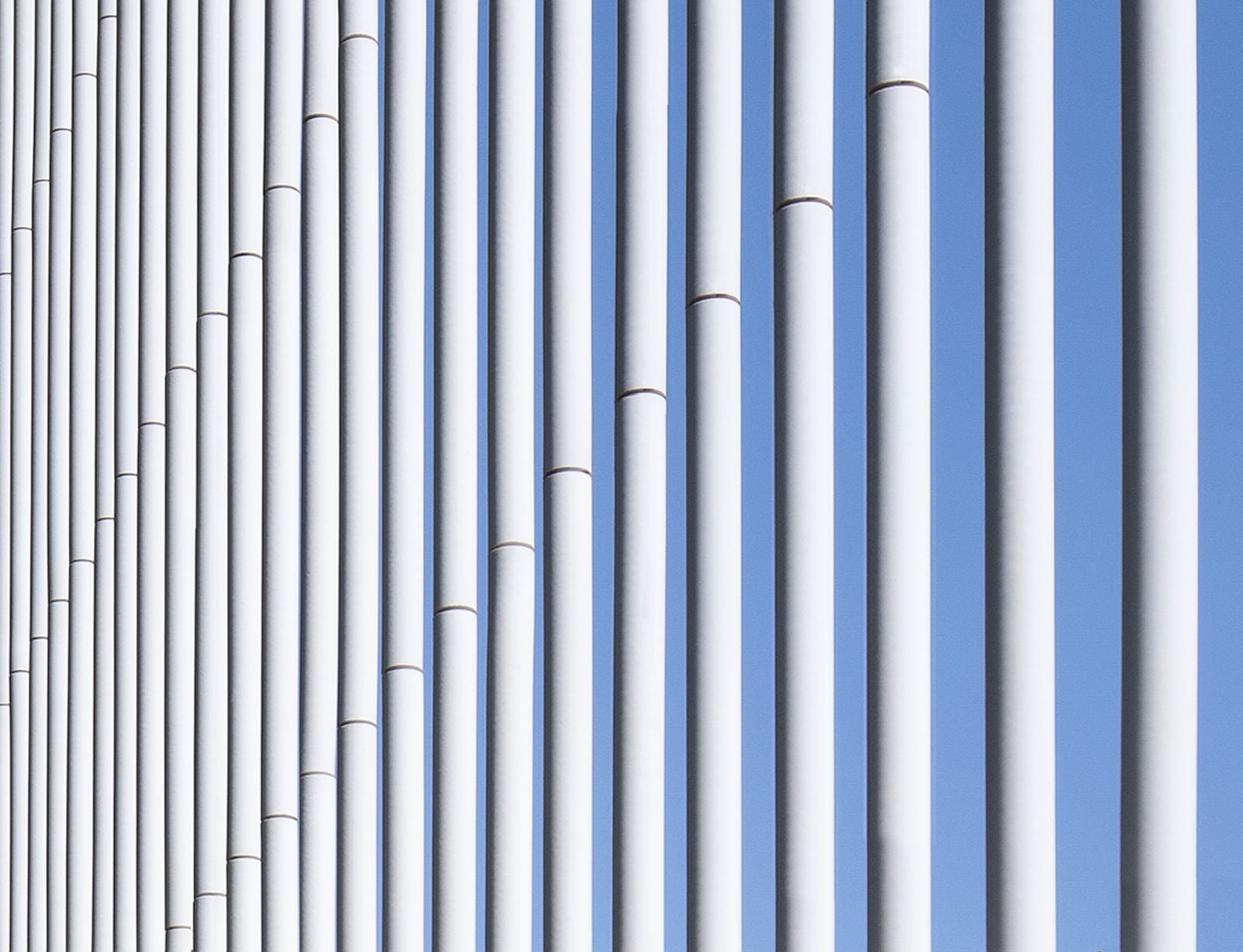

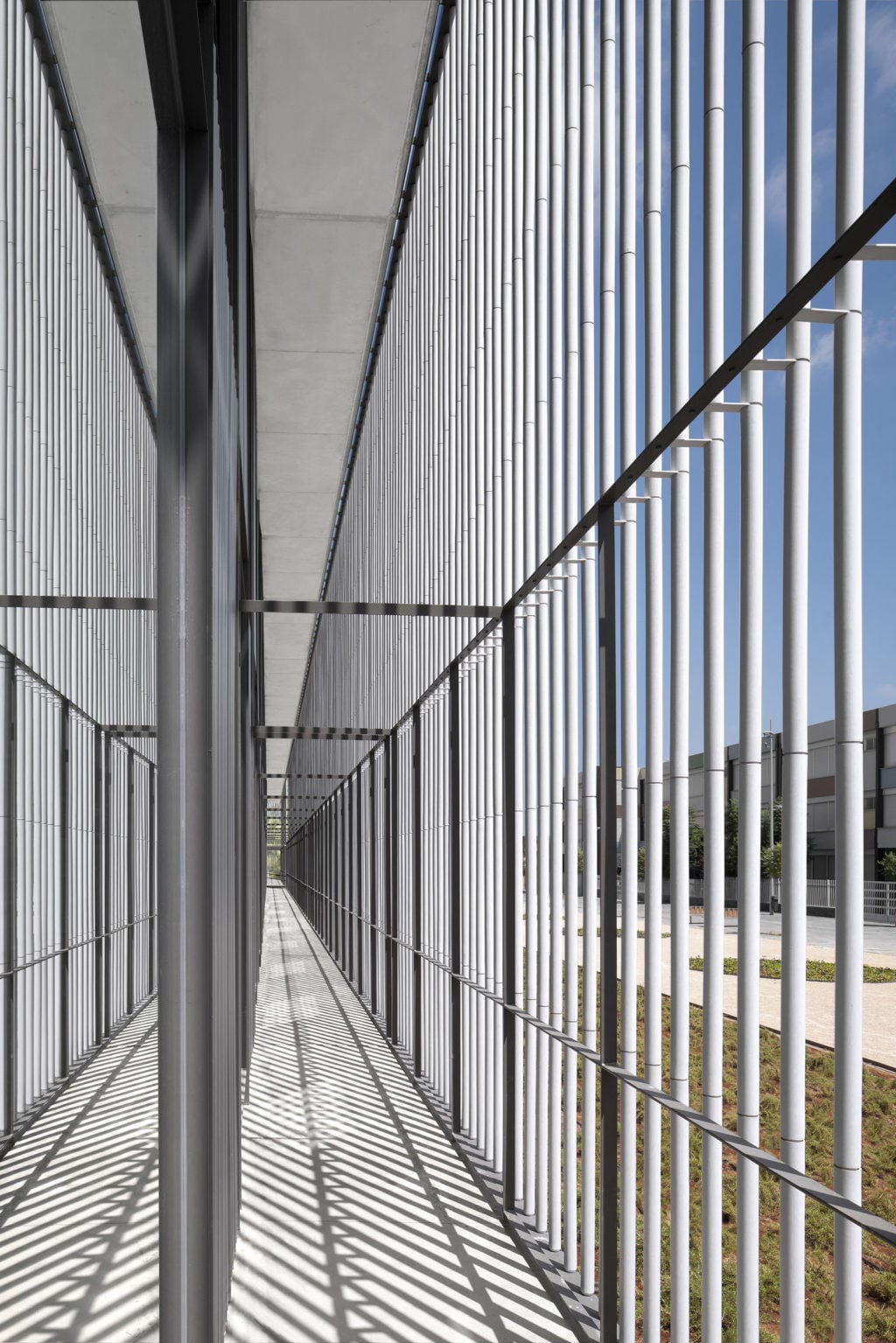

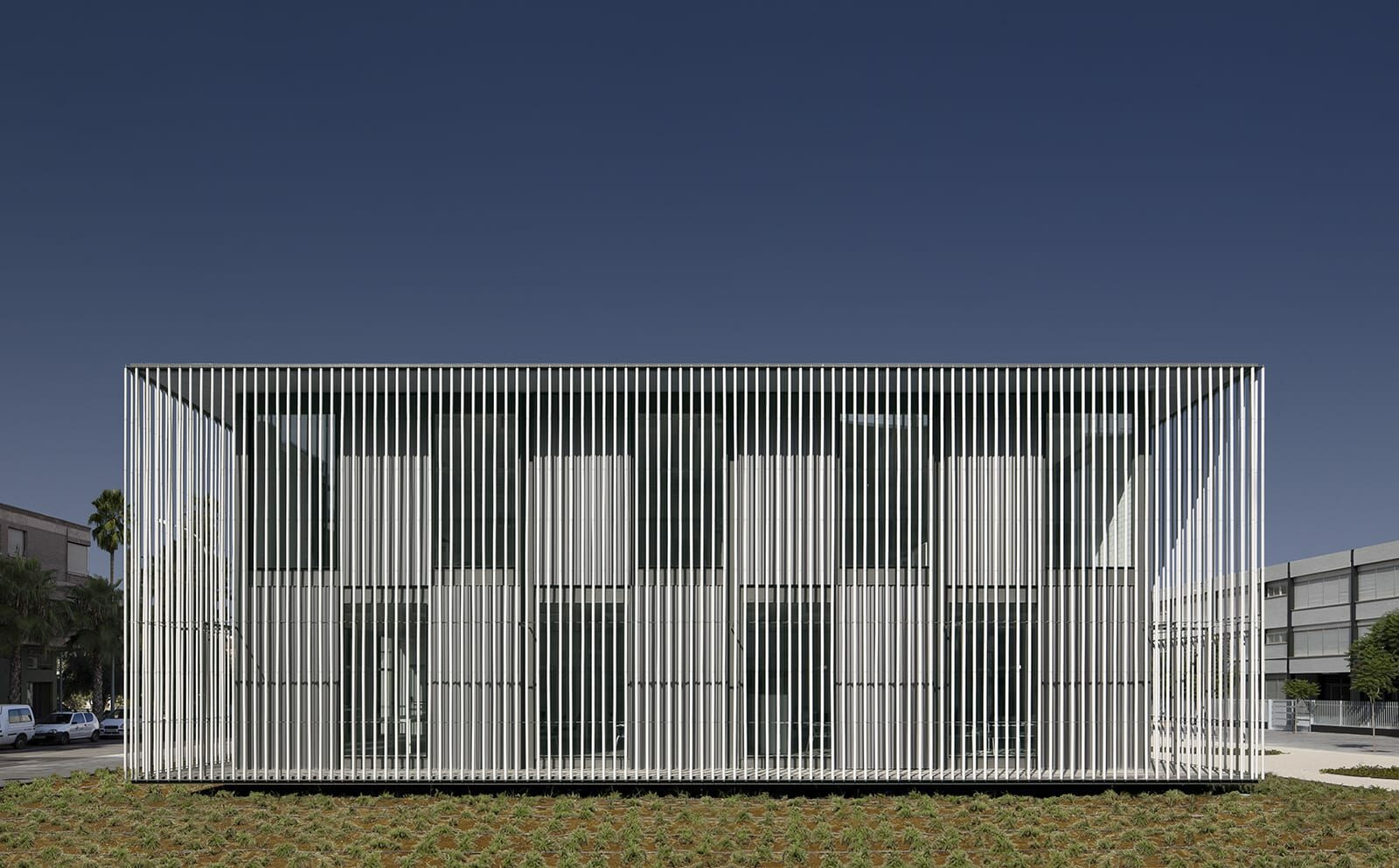

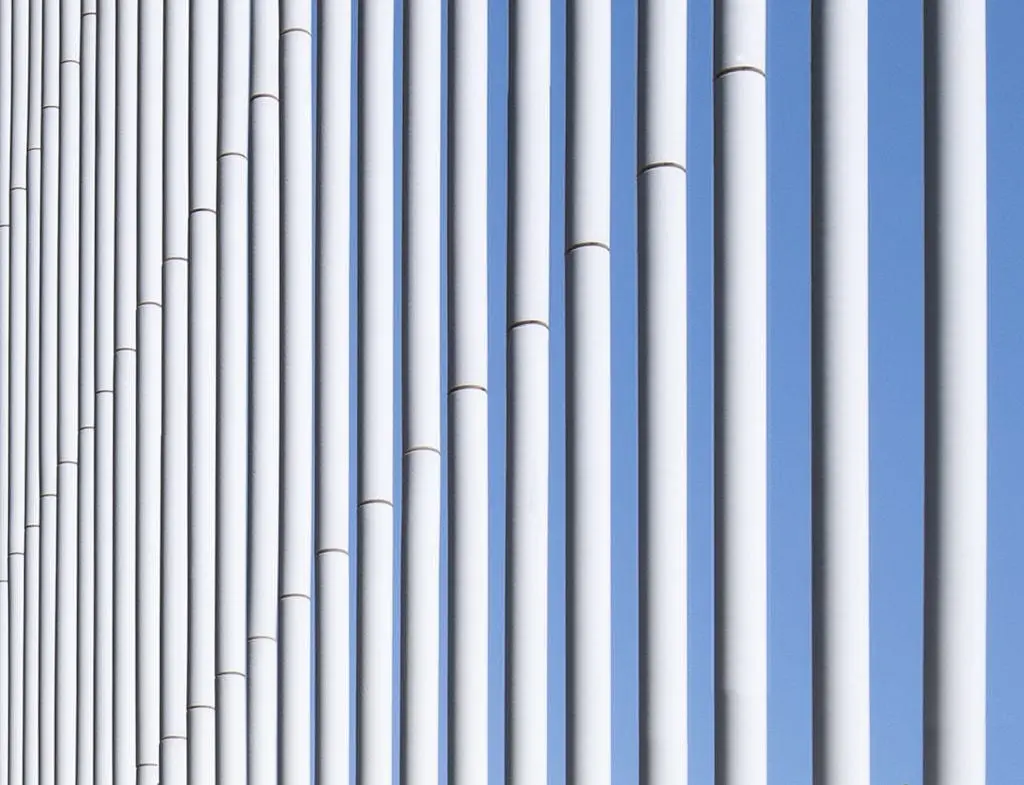

The façade, built with the local company Butech is made with prestressed steal bars covered by ceramic cylinders of 52 mm diameter and 1m high, separated 19 cm. It proposes a reinterpretation of Mediterranean culture from the use of high technology. It combines innovation with roots in the tradition of wooden pieces of many Mediterranean villages to build a pleasant light, temperature and acoustical filter through an intermediate space. Opaque parts of the façade are covered by corrugated sheet panels, related with the exterior curtain. Inside areas are built with rough painted ceramic bricks and pavement with ceramic meshed pieces similar to the Mediterranean mosaics. The library becomes the innovative, dynamic and cultural image of the society and industrial ceramic sector of Vila-real.

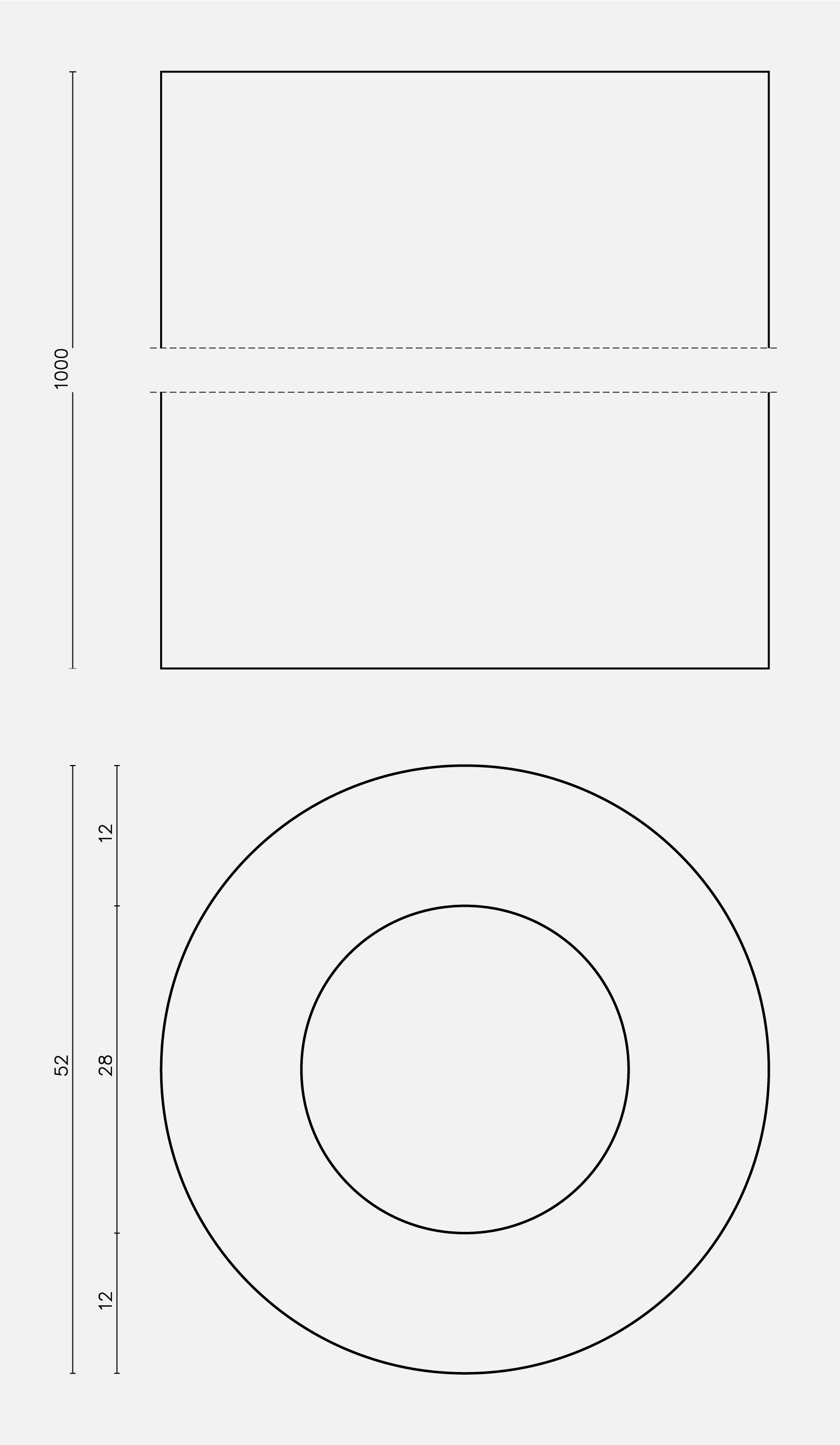

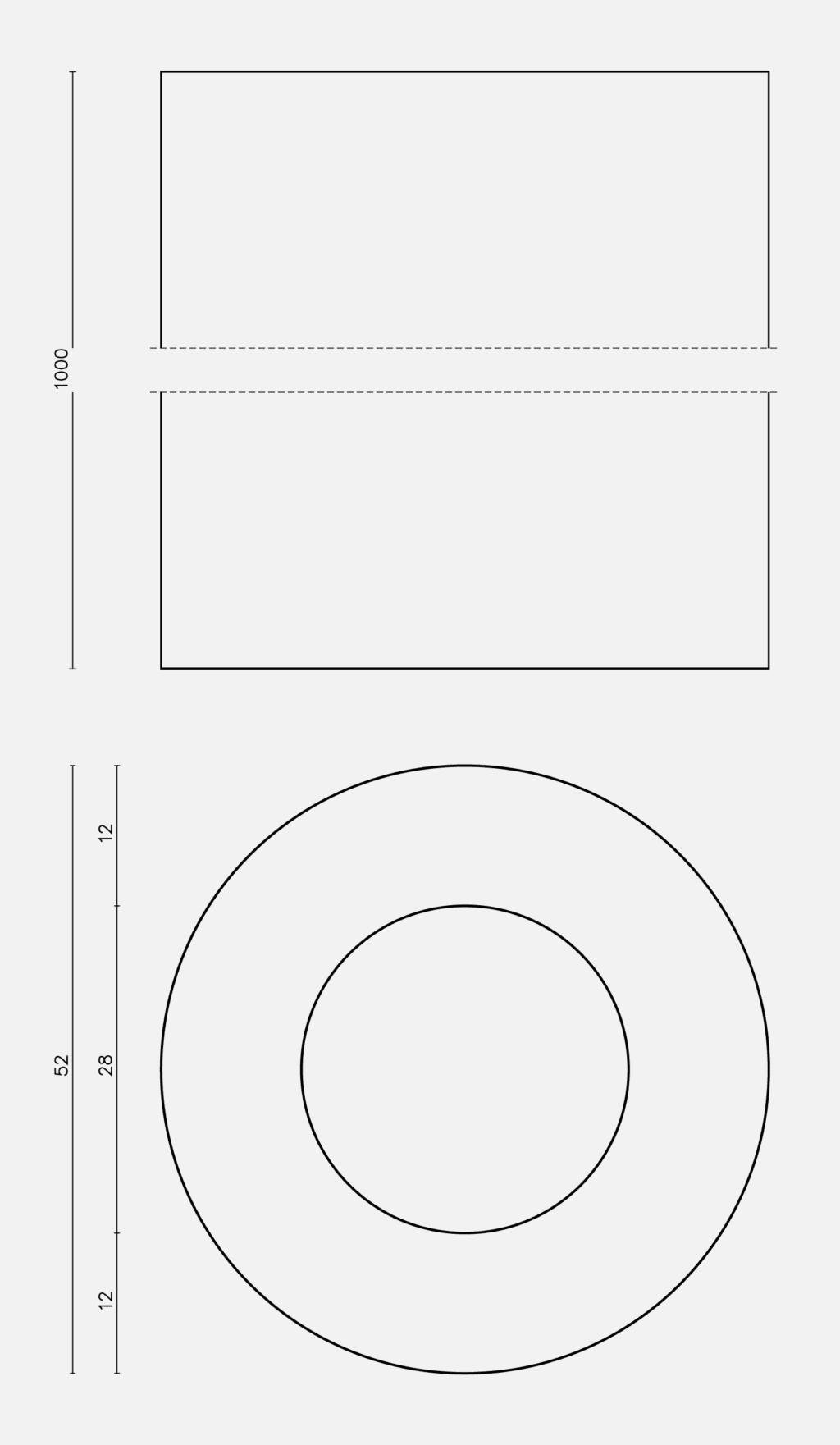

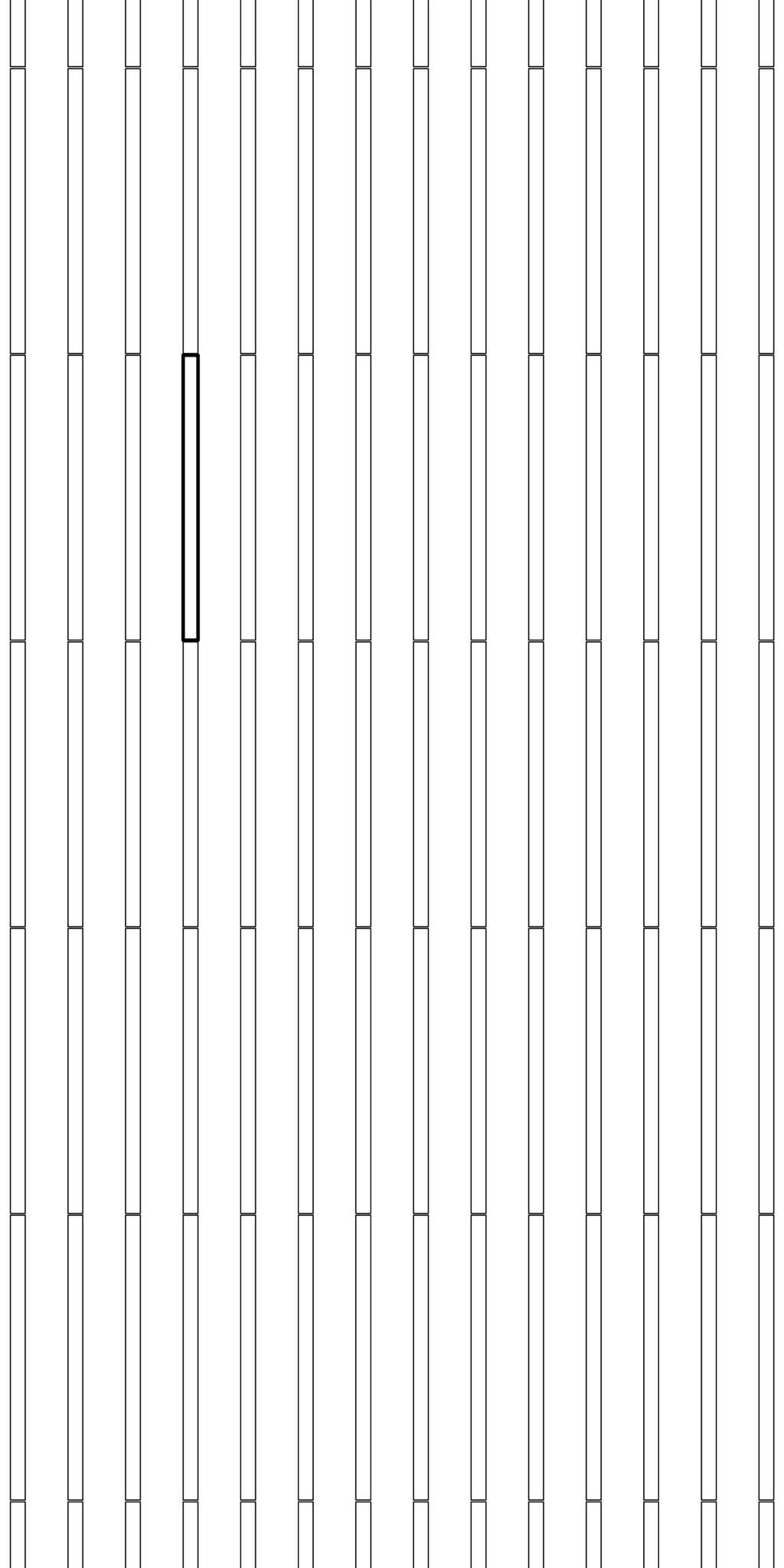

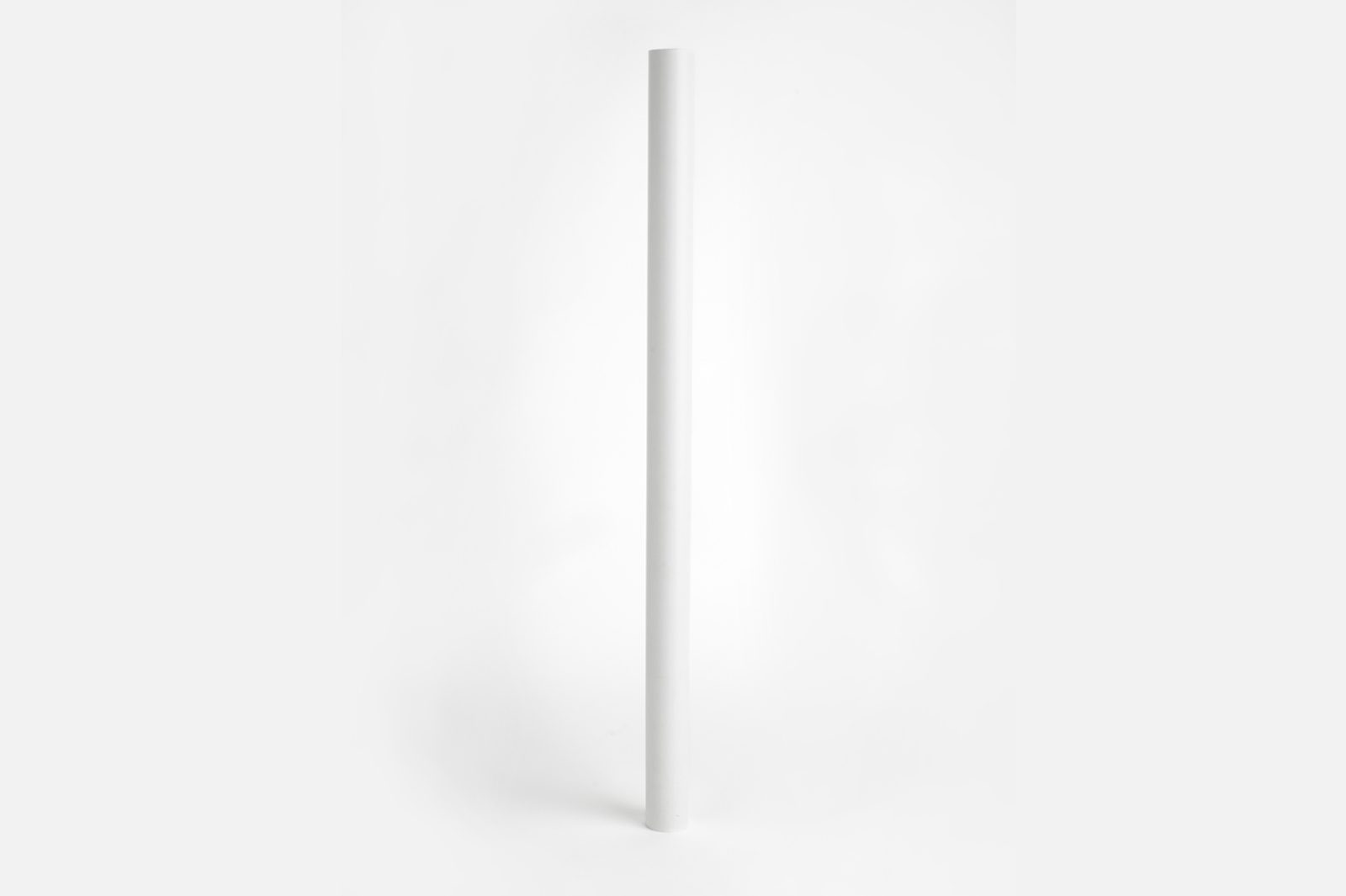

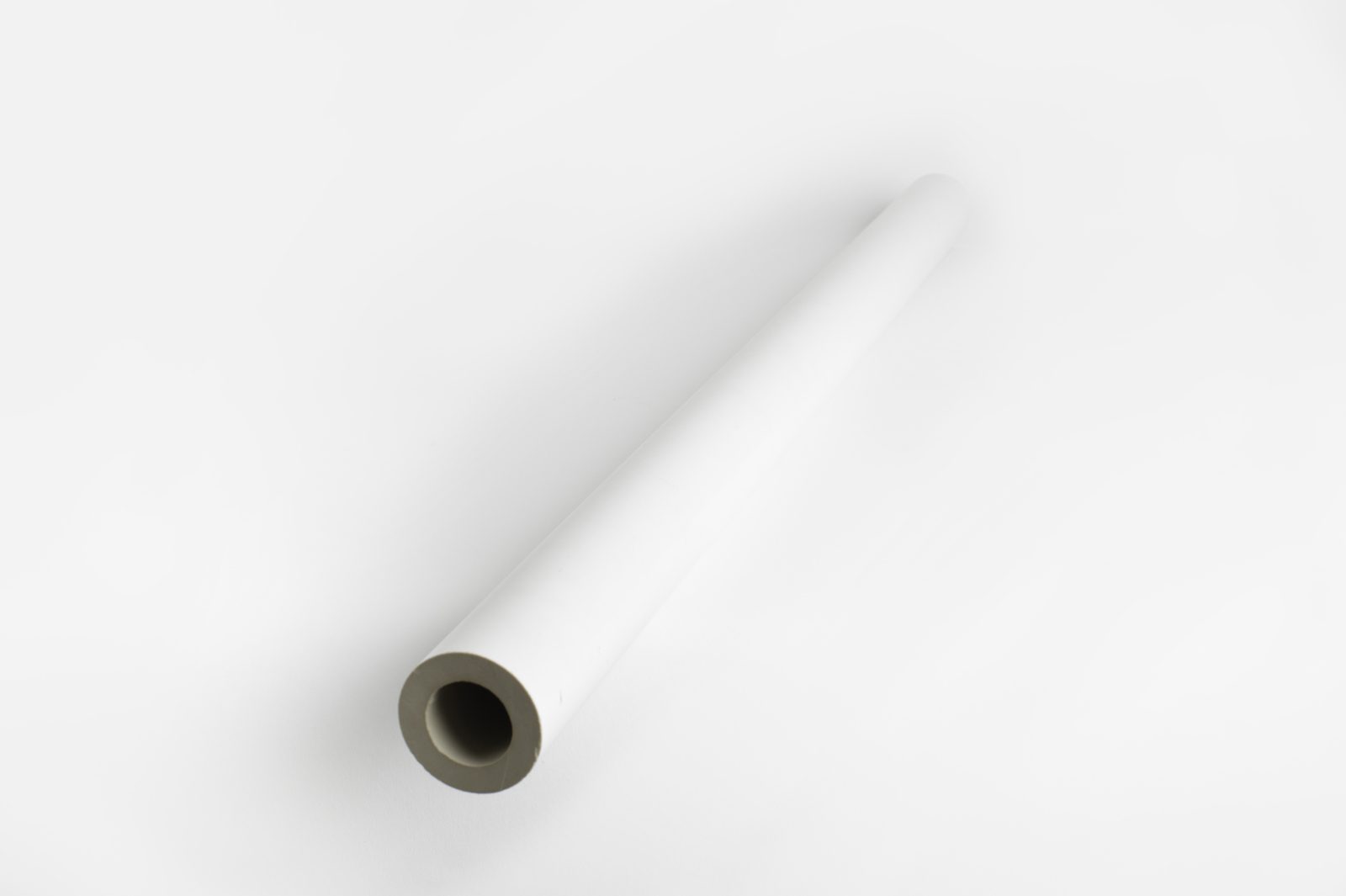

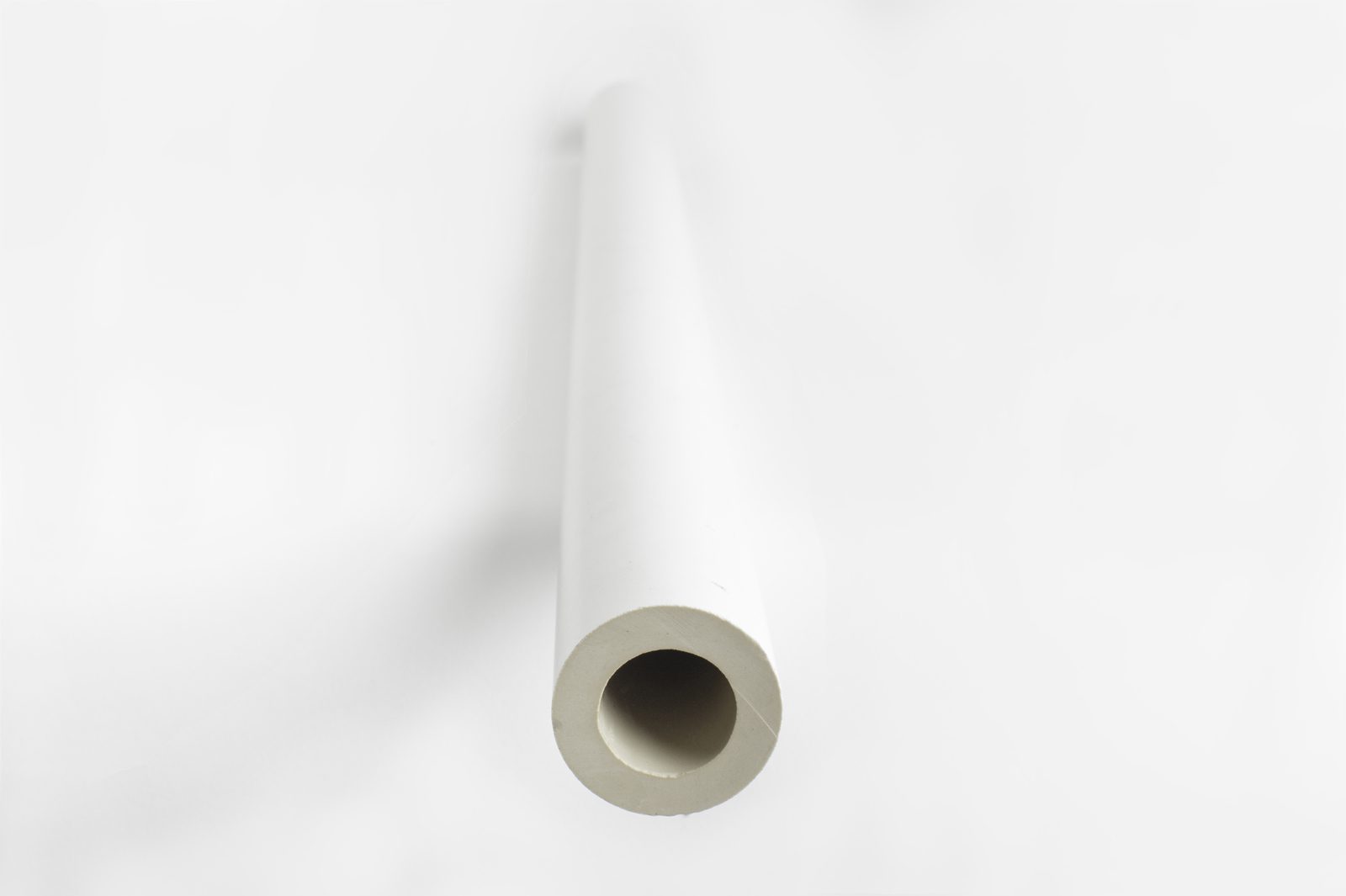

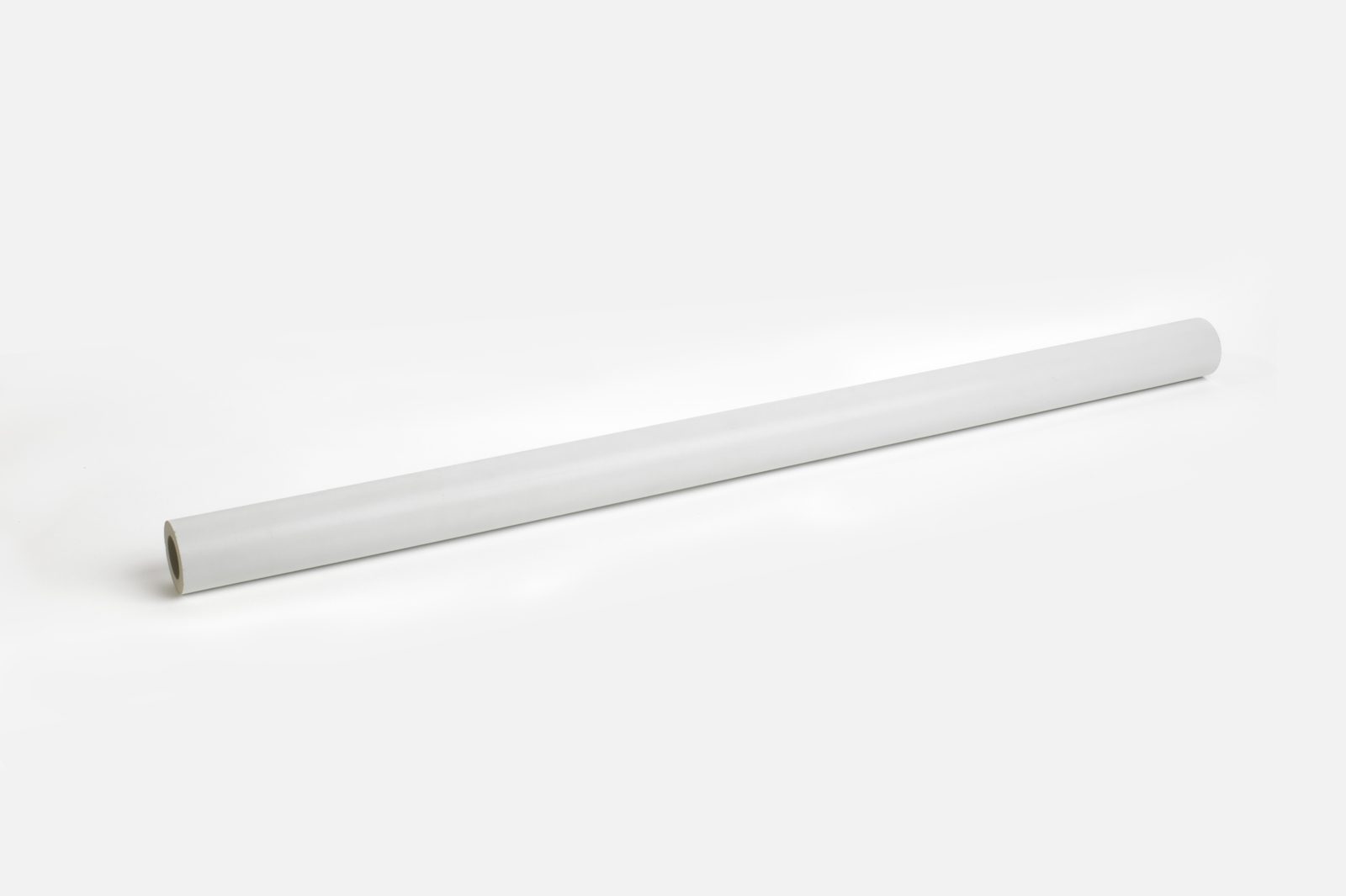

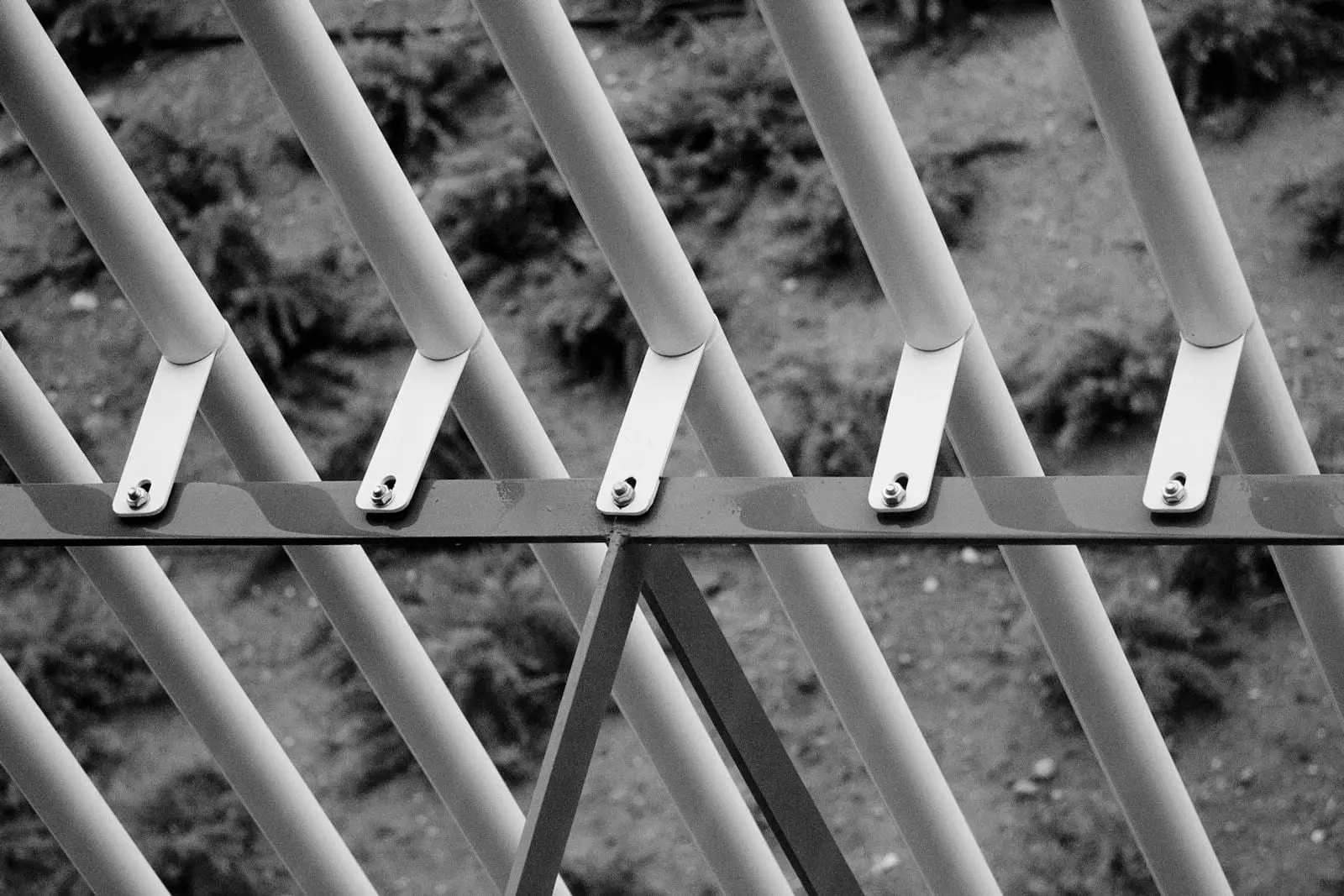

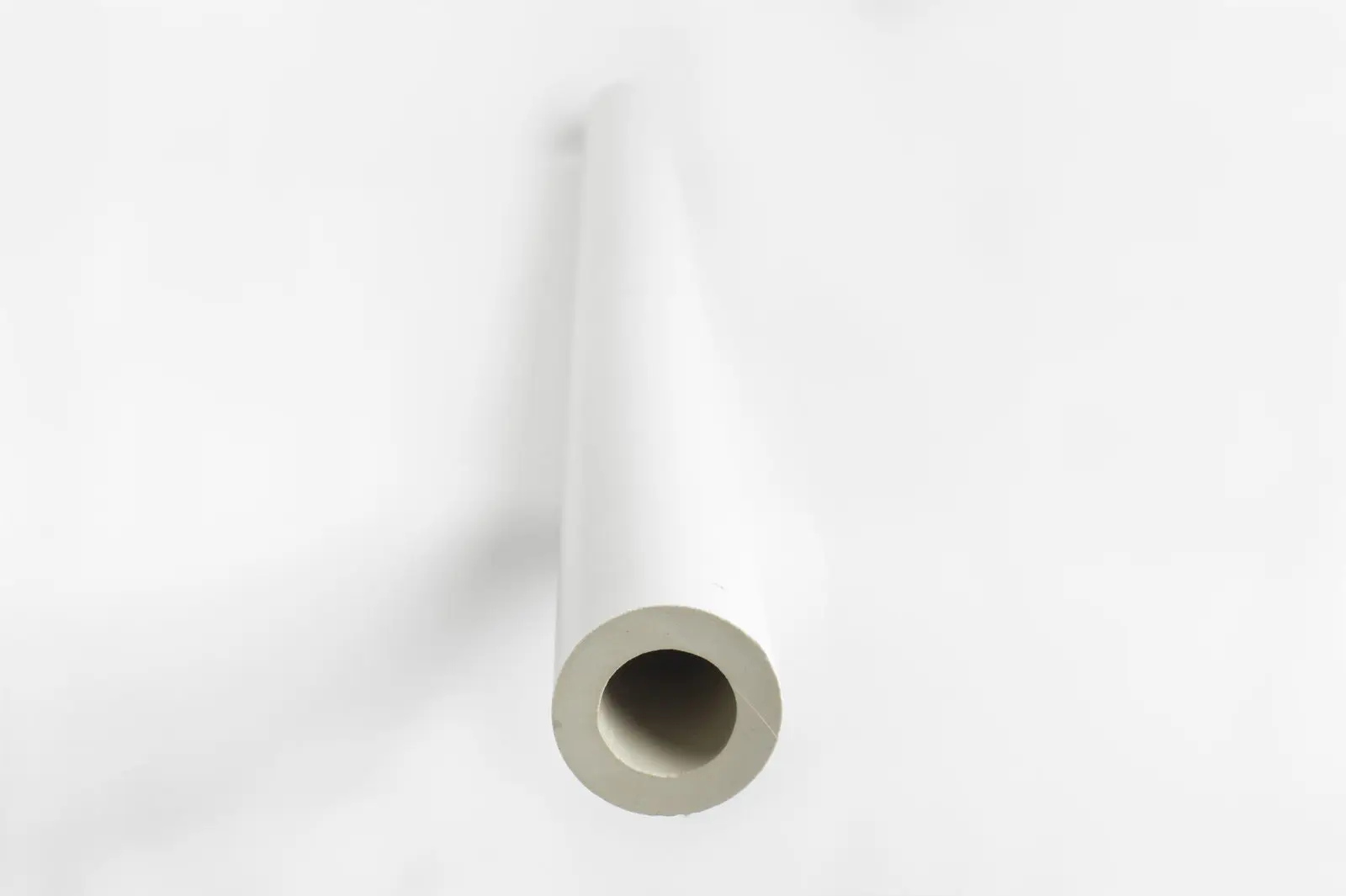

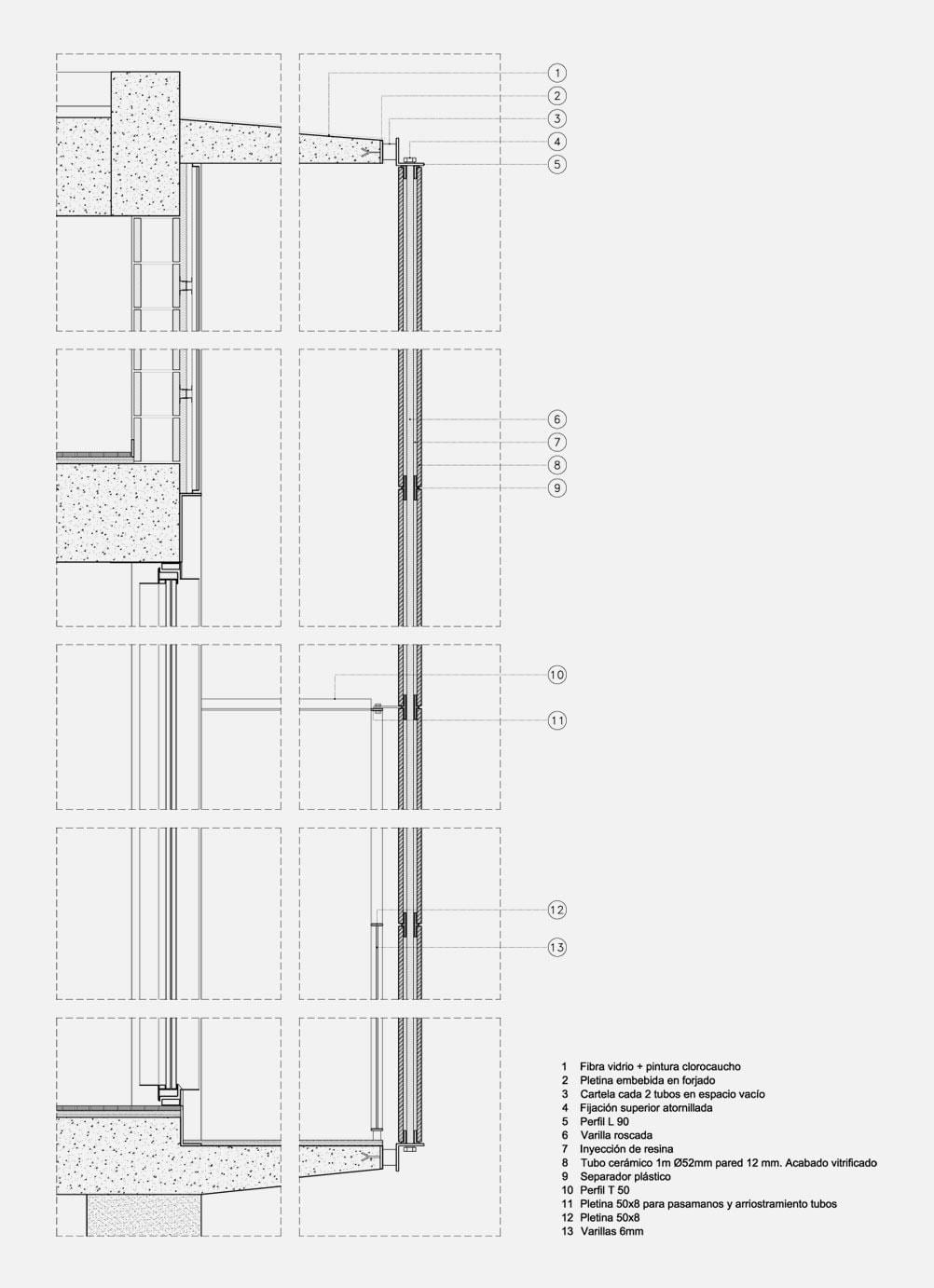

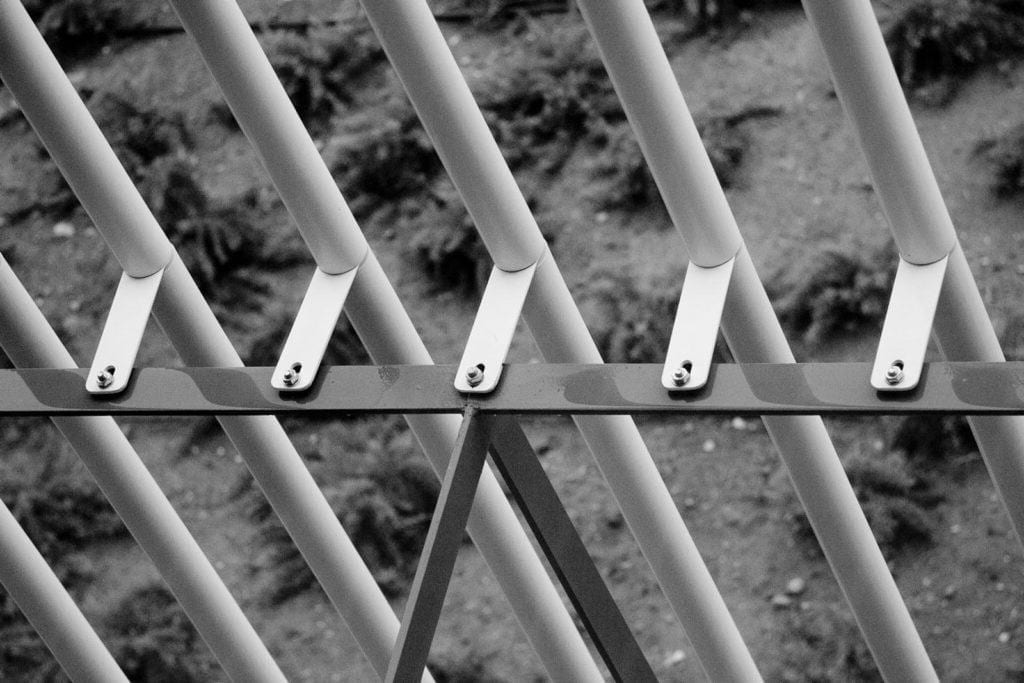

Ceramic piece. Extruded, vitrified ceramic and white plaster piece, 95 cm tall, 52 mm diameter and 10 mm thickness. 16 mm steel rods stitch each piece with plastic injection molded spacers. These spacers leave a 5 mm gap used in the third piece (2,75 m) to insert a plate with a spindle screwed to the railing system, attached to the facade in order to rigidify the whole thing. The gap between the ceramic wall and the rod is filled with injected foam to increase its stability. Each ceramic column is delivered pre-assembled and prestressed. It is inserted through the top, screwed to the 90 mm inverted L-profile, and fixed to the lower part.
Villarreal City Council
Carlos Ferrater
Alberto Peñín
José L. Gimeno
José L. Gimeno (Structural engineering)
J. Dolz (Installations)
E. Mezquita, E. Fabregat (Quantity surveyors)
Alejo Bagué
